NS TOOL：Diamond Coating End Mill Series | TOKYO YAMAKATSU CORPORATION

Endmills

NS TOOL

Suitable for machining of graphite material and silicon-alminium alloy.

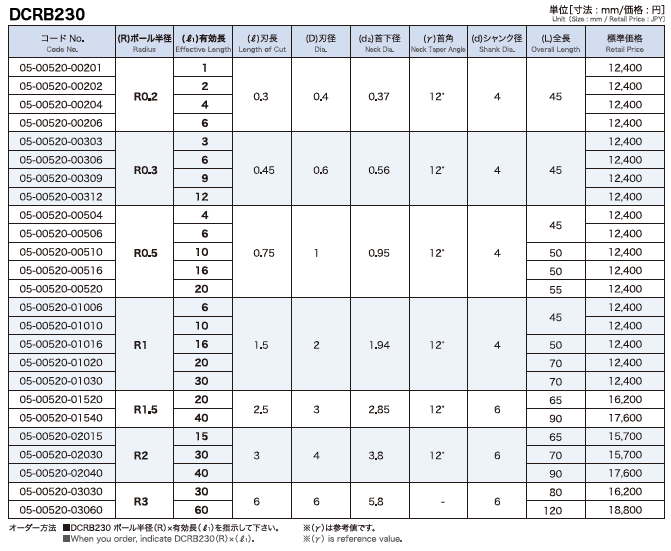

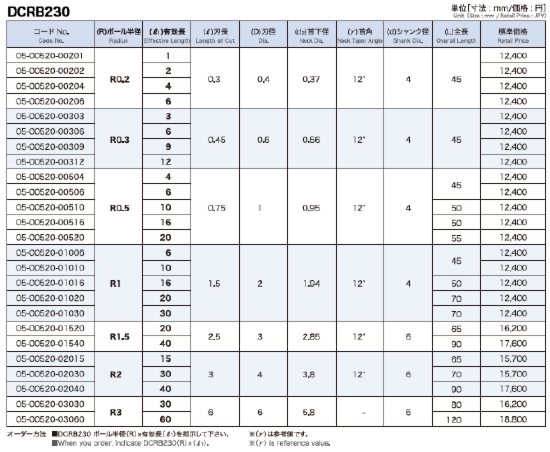

Long Neck Ball End Mill

・Flute：2
・Helix Angle：30°
・Tool Material：Regular Grain Carbide
・Surface treatment：Diamond coating

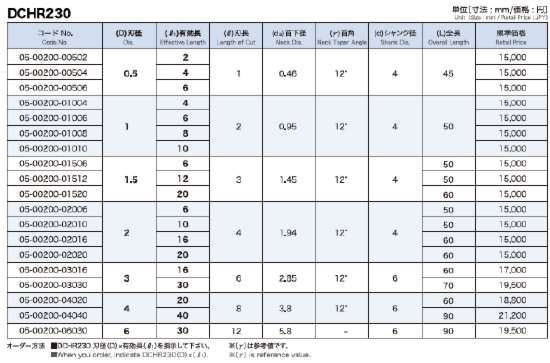

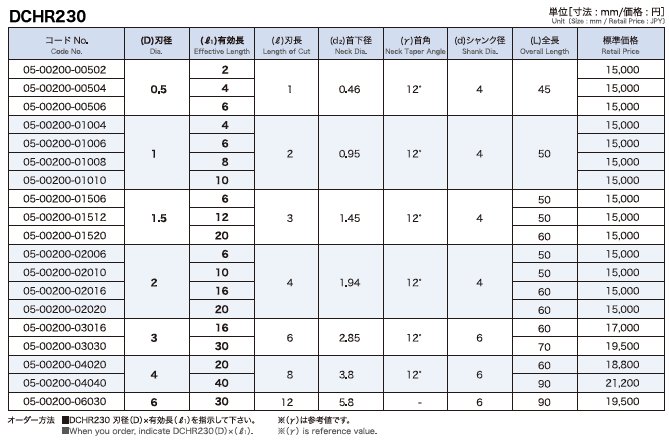

Long Neck Square End Mill

・Flute：2
・Helix Angle：30°
・Tool Material：Regular Grain Carbide
・Surface treatment：Diamond coating

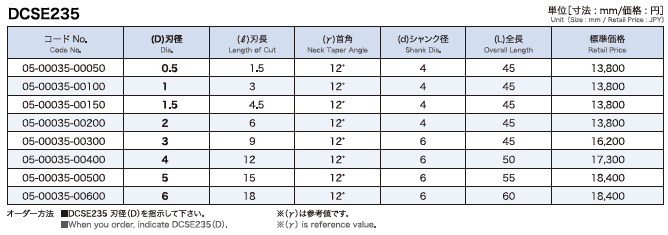

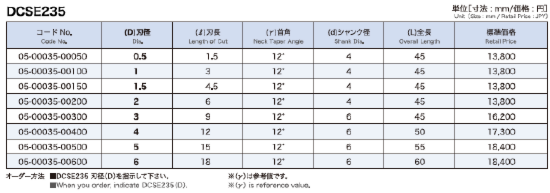

2-Flute Square End Mill

・Flute：2
・Helix Angle：35°
・Tool Material：Regular Grain Carbide
・Surface treatment：Diamond coating
